About Steam Tables Spreadsheet


Thermodynamic and Transport Properties of Water and Steam

The steam tables application calculates 30 thermodynamic and transport properties of water and steam. It allows 16 different combinations of input variables to be used for calculations.

Input variables that can be used are:

  • Pressure
  • Temperature
  • Enthalpy
  • Entropy
  • Volume
  • Internal energy
  • Steam quality

The application uses new industrial formulation for steam tables, called "IAPWS Industrial Formulation 1997 for the Thermodynamic Properties of Water and Steam (IAPWS-IF97)". For transport properties calculations are based on the latest internationally accepted equations also available from IAPWS.


Introduction to IAPWS-IF97

In 1997, the International Association for the Properties of Water and Steam (IAPWS) adopted a new formulation for the thermodynamic properties of water and steam for industrial use. This new formulation, called:

  • "The IAPWS Industrial Formulation 1997 for the Thermodynamic Properties of Water and Steam (IAPWS-IF97)"

The new Industrial formulation replaces the previous industrial formulation, IFC-67, that had formed the basis for power-plant calculation and other applications in energy engineering since the late 1960's. IAPWS-IF97 significantly improves both the accuracy and speed of the calculation of the thermodynamic properties compared with the old formulation, IFC-67.


Advantages of IAPWS-IF97

The driving force behind the development of the new formulation was increased computing speed. This effort was promoted by the power industry, which makes extensive use of steam properties in preparing power cycle calculations.

There are a number of important advantages which IAWPS-IF97 has over the old industrial formulation IFC-67, these include:

  • Improved Consistency at Interregional Boundaries
  • Better Agreement with Scientific Formulation (IAWPS 95)
  • Improved Calculation Speed
  • Agreement with ITS-90 International Temperature Scale
  • New High Temperature Region
  • Properties of Metastable Steam



Thermodynamic properties


Range of validity

The entire set of equations of IAPWS-IF97, used by the application for calculation of thermodynamic properties, is defined by the following temperature and pressure range:

  • 273.15 <= T <= 1073.15 K       p <= 100 MPa
  • 1073.15 K < T <= 2273.15 K       p <= 50 MPa

Regions

Figure 1 shows the five regions into which the entire range of validity of IAPWS-IF97 is divided.


Steam table regions defined in IAPWS-IF97

Fig.1 Steam table regions defined in IAPWS-IF97


For more detailed information about the boundaries of the regions, and equations involved refer to "Release on the IAPWS Industrial Formulation 1997 for the Thermodynamic Properties of Water and Steam" presented by The International Association for the Properties of Water and Steam.




Transport properties


Range of validity

Surface Tension

The equation for surface tension between liquid and vapor phase has a range of validity from the triple point to the critical point:

  • 273.16 <= T <= 647.096 K

Viscosity of Ordinary Water Substance

The equations for dynamic and kinematic viscosity are valid in the range:

  • 216.6 K <= T <= 1000 K      0 <= p <= 100 MPa
  • 0 °C <= t <= 150 °C       p <= 500 MPa
  • 150 °C < t <= 600 °C       p <= 350 MPa
  • 600 °C < t <= 900 °C       p <= 300 MPa.

Thermal Conductivity of Ordinary Water Substance

The equations for thermal conductivity and thermal diffusivity are valid in the range:

  • 216.6 K <= T <= 1000 K
  • 0 °C <= t <= 500 °C       p <= 100 MPa
  • 500 °C < t <= 650 °C       p <= 70 MPa
  • 650 °C < t <= 800 °C       p <= 40 MPa.

Prandtl Number

Prandtl number is dependent of dynamic viscosity and thermal conductivity, so it has a range of validity according to these properties.




Reference State


"Since the 5th International Conference on the Properties of Steam in London in 1956, the specific internal energy and the specific entropy of the saturated liquid at the triple point have been set equal to zero. Thus, at the triple-point temperature T = 273.16 K,"


  • ut' = 0
  • st' = 0



Input variables


To calculate properties of water and steam using IAPWS-IF97, Steam97Web allows up to 16 different combinations of input variables in SI or English units:

  •  1 f (pressure, temperature)
  •  2 f (pressure, enthalpy)
  •  3 f (pressure, entropy)
  •  4 f (pressure, specific volume)
  •  5 f (pressure, internal energy)
  •  6 f (temperature, enthalpy)
  •  7 f (temperature, entropy)
  •  8 f (temperature, specific volume)
  •  9 f (temperature, internal energy)
  • 10f (enthalpy, entropy)
  • 11f (internal energy, entropy)
  • 12f (specific volume, entropy)
  • 13f (enthalpy, specific volume)
  • 14f (internal energy, specific volume)
  • 15f (pressure, quality)
  • 16f (temperature, quality)

Range of validity for listed functions:

  • Functions 1-14 are valid in all five regions defined by the IAPWS-IF97
  • Functions 15 and 16 are valid in the region 4 (saturation region) only

For input pressure, always enter absolute pressure and not gauge pressure.




PropertyIDs


All functions in the Steam Tables Spreadsheet require three arguments as input. The first two arguments are numbers specifying input data, and the third argument is a string, called here propertyID, which specifies the property that should be calculated. Here is a list of all available properties in the Spreadsheet application and their respective propertiyIDs. PropertyIDs are displayed in bold.

  •  1 Pressure, p
  •  2 Temperature, t
  •  3 Density, d
  •  4 Specific volume, v
  •  5 Specific enthalpy, h
  •  6 Specific entropy, s
  •  7 Specific internal energy, u
  •  8 Specific isobaric heat capacity, cp
  •  9 Specific isochoric heat capacity, cv
  • 10Speed of sound, w
  • 11Isentropic exponent, kapa
  • 12Specific Helmholtz free energy, H
  • 13Specific Gibbs free energy, G
  • 14Compressibility factor, Z
  • 15Steam quality, x
  • 16Region, region
  • 17Isobaric volume expansion coefficient, alpha
  • 18Isothermal compressibility, Kt
  • 19Partial derivative (dV/dT)p, dvdt
  • 20Partial derivative (dV/dP)T, dvdp
  • 21Partial derivative (dP/dT)v, dpdt
  • 22Partial derivative (dP/dV)T, dpdv
  • 23Isothermal Joule-Thomson coefficient, iJTC
  • 24Joule-Thomson coefficient, JTC
  • 25Dynamic viscosity, dv
  • 26Kinematic viscosity, kv
  • 27Thermal conductivity, tc
  • 28Thermal diffusivity, td
  • 29Prandtl number, Pr
  • 30Surface tension, Sigma



Prerequisites


The application provides a subset of functionality that is the same or similar to MS Excel, but the main feature of the application is added ability to calculate Steam Table properties in the spreadsheet format.

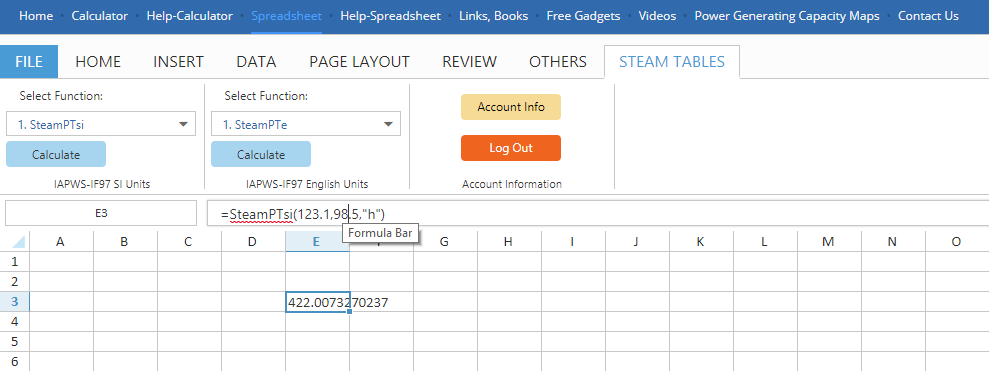

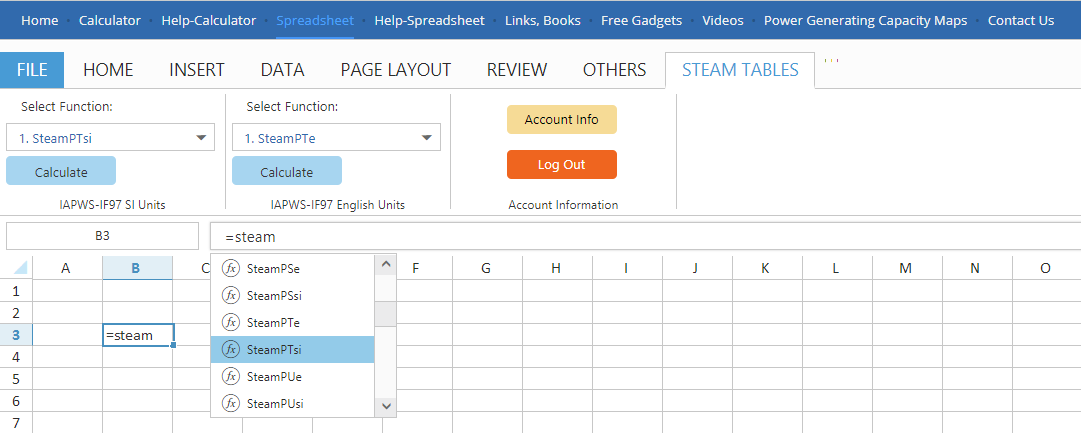

It is assumed that a user has a working knowledge of MS Excel, so we will only provide support for features related to the calculation of thermodynamic and transport properties of water and steam as implemented in the application.




Login


The premium account enables use of the Calculator application and the Spreadsheet application. The applications can be used at the same time, but since they are two different applications a separate login is required for each application.

  • For the Spreadsheet, go to the Spreadsheet page and login
  • For the Calculator, go to the Calculator page and use login menu item or toolbar button (looks like a lock) to login



SatPXsi


double SatPXsi(double pressure, double quality, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in bar
  •  2 quality (argument type double) - specifies the input quality in %
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate saturation properties (in SI units) based on the given pressure and quality.



SatTXsi


double SatTXsi(double temperature, double quality, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °C
  •  2 quality (argument type double) - specifies the input quality in %
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate saturation properties (in SI units) based on the given temperature and quality.



SteamPTsi


double SteamPTsi(double pressure, double temperature, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in bar
  •  2 temperature (argument type double) - specifies the input temperature in °C
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given pressure and temperature.



SteamPHsi


double SteamPHsi(double pressure, double enthalpy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in bar
  •  2 enthalpy (argument type double) - specifies the input enthalpy in kJ/kg
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given pressure and enthalpy.



SteamPSsi


double SteamPSsi(double pressure, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in bar
  •  2 entropy (argument type double) - specifies the input enthalpy in kJ/(kg·K)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given pressure and entropy.



SteamPUsi


double SteamPUsi(double pressure, double internal_energy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in bar
  •  2 internal_energy (argument type double) - specifies the input internal energy in kJ/kg
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given pressure and internal energy.



SteamPVsi


double SteamPVsi(double pressure, double volume, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in bar
  •  2 volume (argument type double) - specifies the input volume in m³/kg
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given pressure and volume.



SteamTHsi


double SteamTHsi(double temperature, double enthalpy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °C
  •  2 enthalpy (argument type double) - specifies the input enthalpy in kJ/kg
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given temperature and enthalpy.



SteamTSsi


double SteamTSsi(double temperature, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °C
  •  2 entropy (argument type double) - specifies the input entropy in kJ/(kg·K)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given temperature and entropy.



SteamTUsi


double SteamTUsi(double temperature, double internal_energy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °C
  •  2 internal_energy (argument type double) - specifies the input internal energy in kJ/kg
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given temperature and internal energy.



SteamTVsi


double SteamTVsi(double temperature, double volume, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °C
  •  2 volume (argument type double) - specifies the input volume in m³/kg
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given temperature and volume.



SteamHSsi


double SteamHSsi(double enthalpy, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 enthalpy (argument type double) - specifies the input enthalpy in kJ/kg
  •  2 entropy (argument type double) - specifies the input entropy in kJ/(kg·K)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given enthalpy and entropy.



SteamHVsi


double SteamHVsi(double enthalpy, double volume, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 enthalpy (argument type double) - specifies the input enthalpy in kJ/kg
  •  2 volume (argument type double) - specifies the input volume in m³/kg
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given enthalpy and volume.



SteamUSsi


double SteamUSsi(double internal_energy, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 internal_energy (argument type double) - specifies the input internal energy in kJ/kg
  •  2 entropy (argument type double) - specifies the input entropy in kJ/(kg·K)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given internal energy and entropy.



SteamUVsi


double SteamUVsi(double internal_energy, double volume, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 internal_energy (argument type double) - specifies the input internal energy in kJ/kg
  •  2 volume (argument type double) - specifies the input volume in m³/kg
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given internal energy and volume.



SteamVSsi


double SteamVSsi(double volume, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 volume (argument type double) - specifies the input volume in m³/kg
  •  2 entropy (argument type double) - specifies the input entropy in kJ/(kg·K)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in SI units) based on the given volume and entropy.



SatPXe


double SatPXe(double pressure, double quality, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in psi
  •  2 quality (argument type double) - specifies the input quality in %
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate saturation properties (in English units) based on the given pressure and quality.



SatTXe


double SatTXe(double temperature, double quality, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °F
  •  2 quality (argument type double) - specifies the input quality in %
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate saturation properties (in English units) based on the given temperature and quality.



SteamPTe


double SteamPTe(double pressure, double temperature, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in psi
  •  2 temperature (argument type double) - specifies the input temperature in °F
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given pressure and temperature.



SteamPHe


double SteamPHe(double pressure, double enthalpy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in psi
  •  2 enthalpy (argument type double) - specifies the input enthalpy in Btu/lb
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given pressure and enthalpy.



SteamPSe


double SteamPSe(double pressure, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in psi
  •  2 entropy (argument type double) - specifies the input enthalpy in Btu/(lb·°F)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given pressure and entropy.



SteamPUe


double SteamPUe(double pressure, double internal_energy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in psi
  •  2 internal_energy (argument type double) - specifies the input internal energy in Btu/lb
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given pressure and internal energy.



SteamPVe


double SteamPVe(double pressure, double volume, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 pressure (argument type double) - specifies the input pressure in psi
  •  2 volume (argument type double) - specifies the input volume in ft³/lb
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given pressure and volume.



SteamTHe


double SteamTHe(double temperature, double enthalpy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °F
  •  2 enthalpy (argument type double) - specifies the input enthalpy in Btu/lb
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given temperature and enthalpy.



SteamTSe


double SteamTSe(double temperature, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °F
  •  2 entropy (argument type double) - specifies the input entropy in Btu/(lb·°F)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given temperature and entropy.



SteamTUe


double SteamTUe(double temperature, double internal_energy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °F
  •  2 internal_energy (argument type double) - specifies the input internal energy in Btu/lb
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given temperature and internal energy.



SteamTVe


double SteamTVe(double temperature, double volume, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 temperature (argument type double) - specifies the input temperature in °F
  •  2 volume (argument type double) - specifies the input volume in ft³/lb
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given temperature and volume.



SteamHSe


double SteamHSe(double enthalpy, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 enthalpy (argument type double) - specifies the input enthalpy in Btu/lb
  •  2 entropy (argument type double) - specifies the input entropy in Btu/(lb·°F)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given enthalpy and entropy.



SteamHVe


double SteamHVe(double enthalpy, double volume, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 enthalpy (argument type double) - specifies the input enthalpy in Btu/lb
  •  2 volume (argument type double) - specifies the input volume in ft³/lb
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given enthalpy and volume.



SteamUSe


double SteamUSe(double internal_energy, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 internal_energy (argument type double) - specifies the input internal energy in Btu/lb
  •  2 entropy (argument type double) - specifies the input entropy in Btu/(lb·°F)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given internal energy and entropy.



SteamUVe


double SteamUVe(double internal_energy, double volume, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 internal_energy (argument type double) - specifies the input internal energy in Btu/lb
  •  2 volume (argument type double) - specifies the input volume in ft³/lb
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given internal energy and volume.



SteamVSe


double SteamVSe(double volume, double entropy, string propertyID)

Return Value
The value of the property specified by the propertyID. The value is #RANGE if point is out of the valid range, and #INDEX if propertyID is unknown. For properties not applicable in the saturation region (region 4) return value is #N/A in SAT.

Arguments
  •  1 volume (argument type double) - specifies the input volume in ft³/lb
  •  2 entropy (argument type double) - specifies the input entropy in Btu/(lb·°F)
  •  3 propertyID (argument type string) - specifies the property that needs to be calculated
Remarks
Use this function to calculate properties (in English units) based on the given volume and entropy.



Locale Settings


The application by default uses English-US settings for entering functions.
This means the following:


  • For decimal point it uses the dot ( . ) notation.
  • For separating arguments of a function it uses the ( , ) comma.

For example:
=SteamPTsi(123.456, 123.456, "h");




Functions Notation


In order to easily identify functions to be used, function names are formated using the following rules:

  • Functions applicable only in the saturation region, as defined by the IAPWS-IF97, start with Sat
  • Functions applicable in all regions, as defined by the IAPWS-IF97, start with Steam
  • Next follow two capital letters denoting the first and the second input parameters of a function, for example PT stands for pressure and temperature respectively
  • Function names ending with si mark functions to be used for calculations in SI Units
  • Function names ending with e mark functions to be used for calculations in English Units

Example

To calculate specific heat in SI Units in any of the regions as defined by the IAPWS-IF97 based on available enthalpy and entropy as input, use the following:

  •  1 h = 51.2 kJ/kg
  •  2 s = 0.15 kJ/(kg·K)
  •  3 the third argument is a string which specifies the property to be calculated by suppling the appropriate propertyID (see propertyIDs section above)
Based on the above provided description, the following should be entered into a cell or the formula bar:
=SteamHSsi(h, s, "cp")




Entering Functions


Values as Function Arguments

Entering function in the Formula Bar:

  •  1 Click on a cell in which to enter a function
  •  2 In the Formula Bar type equal sign ( = ) and begin typing function name and a drop down will show up
  •  3 In the drop down scroll and click on the required function (Fig. 2)
  •  4 Enter function arguments to complete the function (Fig. 3)
  •  5 Press Enter and the result will be displayed in the selected cell

Entering a function in the formula bar - Step 1

Fig.2 Entering a function in the formula bar - Step 1

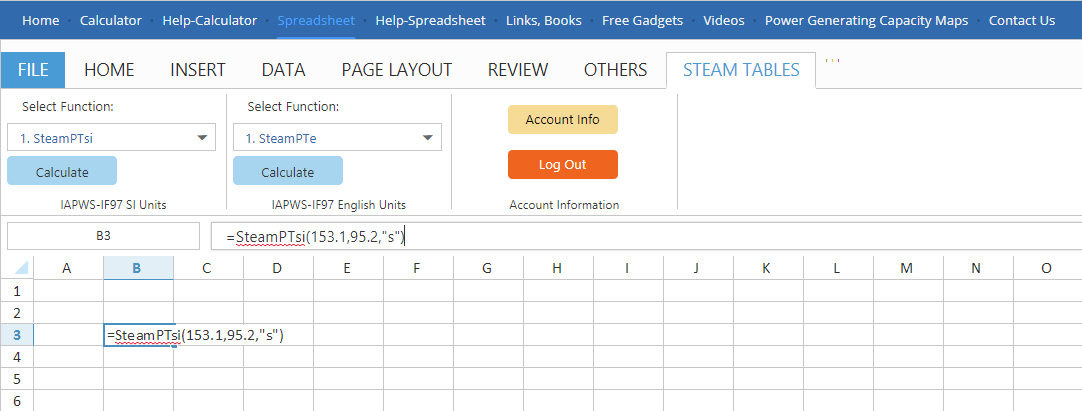

Entering a function in the formula bar - Step 2

Fig.3 Entering a function in the formula bar - Step 2



Reference Cells as Function Arguments

Entering a function in the selected Cell, this example also demonstrates how to use reference cells:

  •  1 Prepare input data by entering them in appropriate cells as shown on the Fig.4
  •  2 Select cell where to display the result
  •  3 In the drop down scroll and click on the required function
  •  4 Enter reference cells containing function arguments to complete the function (Fig. 4)
  •  5 Press Enter and result will be displayed in the selected cell

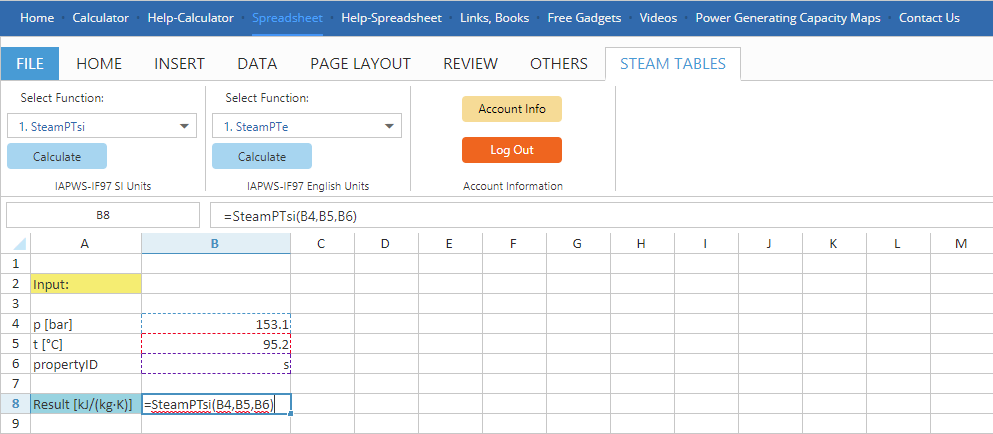

Entering a function in a cell

Fig.4 Entering a function in a cell



IMPORTANT

PropertyID, the third parameter of a function, is a string. When entering it in the formula bar or a selected cell by value it must be surrounded with quotes (see Fig.3).

When propertyID is used in a reference cell the quotes are not needed since the cell value is by default of string type (see Fig.4).




Using the Function Wizard


Values as Function Arguments

Entering a function using the Function Wizard:

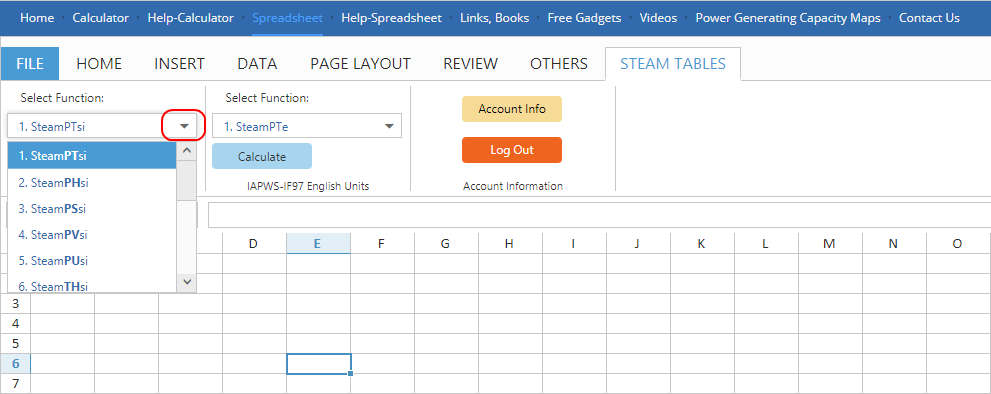

  •  1 Click on the drop down to display the list of available functions (Fig.4)
  •  2 Click on a function in the drop down to select it (Fig.4)

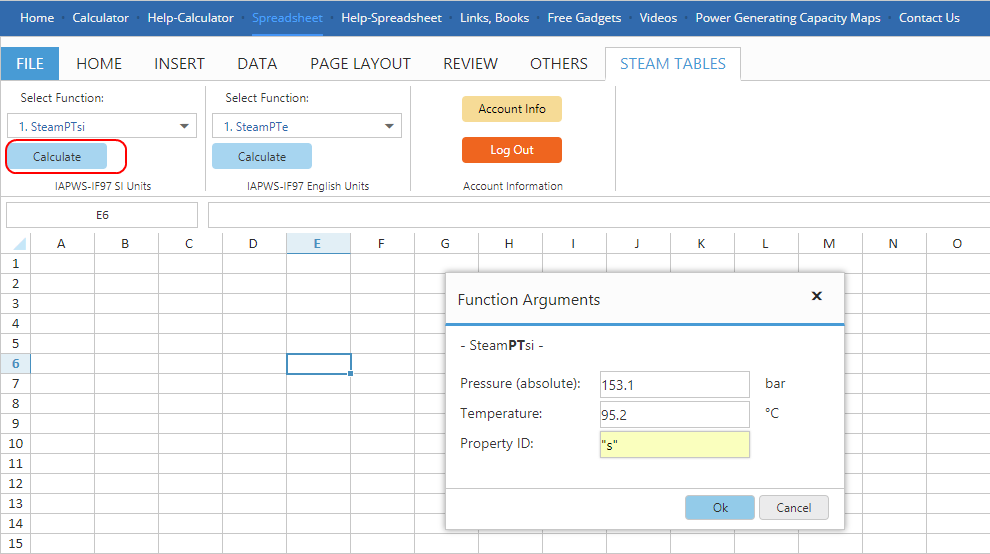

  •  3 Click the Calculate button below the drop down to open the Function Wizard (Fig. 5)
  •  4 Enter function arguments in the Function Wizard, note that argument for Property ID is surrounded with quotes (Fig. 5)
  •  5 Press the Ok button and result will be displayed in the selected cell

Entering a function in the Function Wizard - Step 1

Fig.4 Entering a function in the Function Wizard - Step 1


Entering a function in the Function Wizard - Step 2

Fig.5 Entering a function in the Function Wizard - Step 2



The procedure is exactly the same for English Units, use the appropriate drop down and the Calculate button from the English Units section, to the right of the section for SI Units.



Reference Cells as Function Arguments

Entering a function using reference cells and the Function Wizard:

  •  1 Click on the drop down to display the list of available functions (Fig.6)
  •  2 Click on a function in the drop down to select it (Fig.6)
  •  3 Click the Calculate button below the drop down to open the Function Wizard (Fig. 6)
  •  4 Enter reference cells as function arguments in the Function Wizard, note that argument for Property ID in the cell B6 is not surrounded with quotes
  •  5 Press the Ok button and the result will be displayed in the selected cell

Entering a function with reference cells in the Function Wizard

Fig.6 Entering a function with reference cells in the Function Wizard






Editing Functions


To edit a cell containing a steam table function, use the following steps:

  •  1 Select a cell to edit
  •  2 In the Formula Bar make the required changes
  •  3 Press Enter and the selected cell will be updated

Edit function

Fig.7 Edit function




Performance


The application is optimized to give reasonable performance regarding the speed of calculations, but since it is a web application and depending on the number of users at any given time performance might vary.

If you intend to work with large worksheets and require a large number of calculations (in the hundreds or thousands), this web application will not be appropriate for such use.

For such cases we suggest that you look at our desktop version of the Steam97 Excel Add-In which will satisfy such requirements.

Click on the link below to see our desktop version, the Steam97 Excel Add-In, which provides the same functionality:

Steam97 Excel Add-In for desktop (requires MS Excel)

Upgrades

During design and implementation we paid special attention to the portability of the worksheets created in the Steam Tables Spreadsheet application.

The calculation engine of the desktop and web version of the Steam Table library is exactly the same, so they produce exactly the same results. Also, function names and function formatting are exactly the same, which means that you can upgrade from the web version to the desktop version and worksheets created with the web version will continue to work in the desktop version and vice versa.



Create Charts with Steam Data


The assumption is that you have a working knowledge of MS Excel and are proficient in working with charts in the same.
The application has a similar functionality, but only provides a subset of features related to charts functionality compared to Excel.

To create a Chart use the following steps:

  •  1 Add data to be displayed on a chart
  •  2 Click on the Insert tab in the Ribbon
  •  3 Select data and click on a desired chart type to insert it into the worksheet
  •  4 Format chart

Saturation Line In a Radar Chart

Fig.8 Saturation Line In a Radar Chart


The charts functionality is appropriate for the creation of simple charts, it is not appropriate for creating Mollier diagrams or diagrams of similar complexity.
If you need to create such complex diagrams, we recommend considering the desktop version of the software, namely the Steam97 Excel Add-In (requires MS Excel).



File Tab


To access the File related functionality click on the File tab as depicted on the image below.

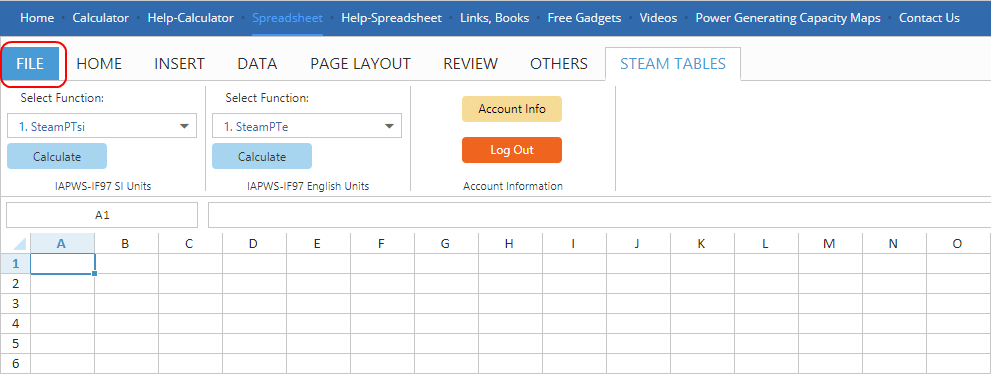

Select File tab

Fig.9 Select the File tab


To return back to the spreadsheet click on the Arrow as marked on the image below.


Return to the spreadsheet

Fig.10 Return to the spreadsheet




New Workbook


To create a New workbook use the following steps:

  •  1 Click on the File tab
  •  2 Click on the New menu item
  •  3 Click on the Blank workbook icon

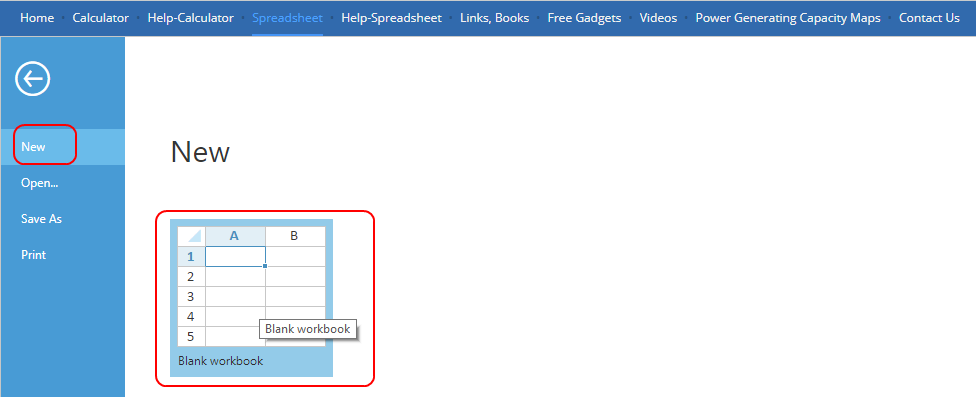

Open a new workbook

Fig.11 Open a new workbook




Open Existing Workbook


To open an existing workbook from your desktop use the following steps:

  •  1 Click on the File tab
  •  2 Click on the Open menu item

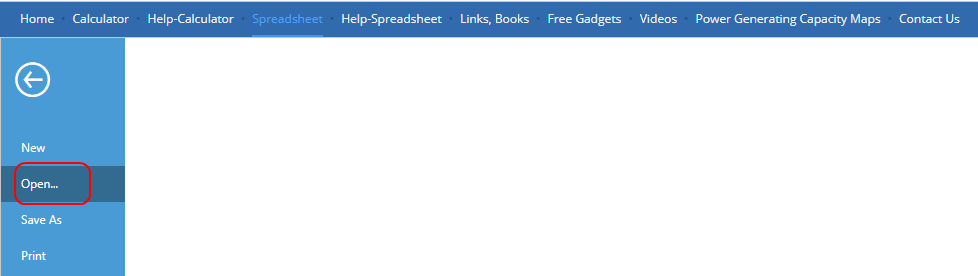

Open workbook

Fig.12 Open workbook




Save Workbook


To Save a workbook to your desktop use the following steps:

  •  1 Click on the File tab
  •  2 Click on the Save As menu item
  •  3 Click on the Save As Excel icon

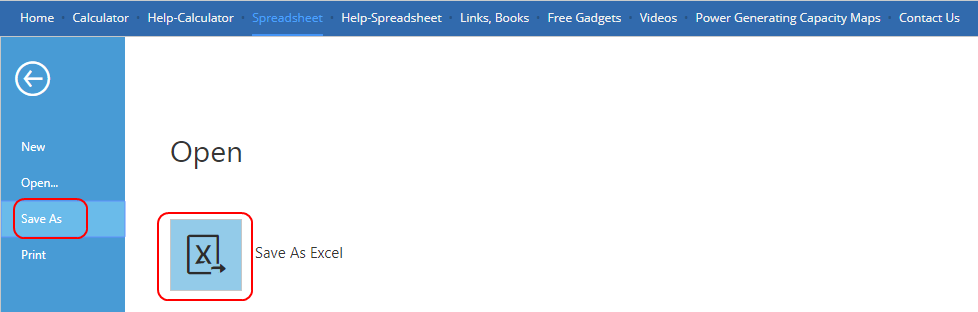

Save workbook

Fig.13 Save workbook


IMPORTANT:
Save data often to avoid losing any work, especially if you will not be active on the page for some time.



Print Workbook


To Print a workbook use the following steps:

  •  1 Click on the File tab
  •  2 Click on the Print menu item
  •  3 Click on the one of available icons Print Sheet or Print Selected

Print workbook

Fig.14 Print workbook
